The world of gas distribution demands precision, safety, and efficiency. A gas manifold 1 intake 4 outlet is one of the most reliable solutions for channeling gas from a single source to multiple outlets.
Whether it’s powering industrial machinery, laboratory equipment, or medical systems, this manifold ensures controlled flow and equal distribution. It’s the backbone of multi-point supply where uninterrupted and secure performance is critical.
Understanding the Purpose of Gas Manifolds
At its core, a gas manifold is designed to simplify distribution. Instead of multiple individual pipelines feeding gas separately, one intake connects to the source and distributes evenly through multiple outlets.
The 1 intake 4 outlet configuration is particularly useful when four separate stations or applications need to receive gas at consistent pressure. This eliminates the risk of imbalance, reduces installation costs, and enhances safety by centralizing the supply system.

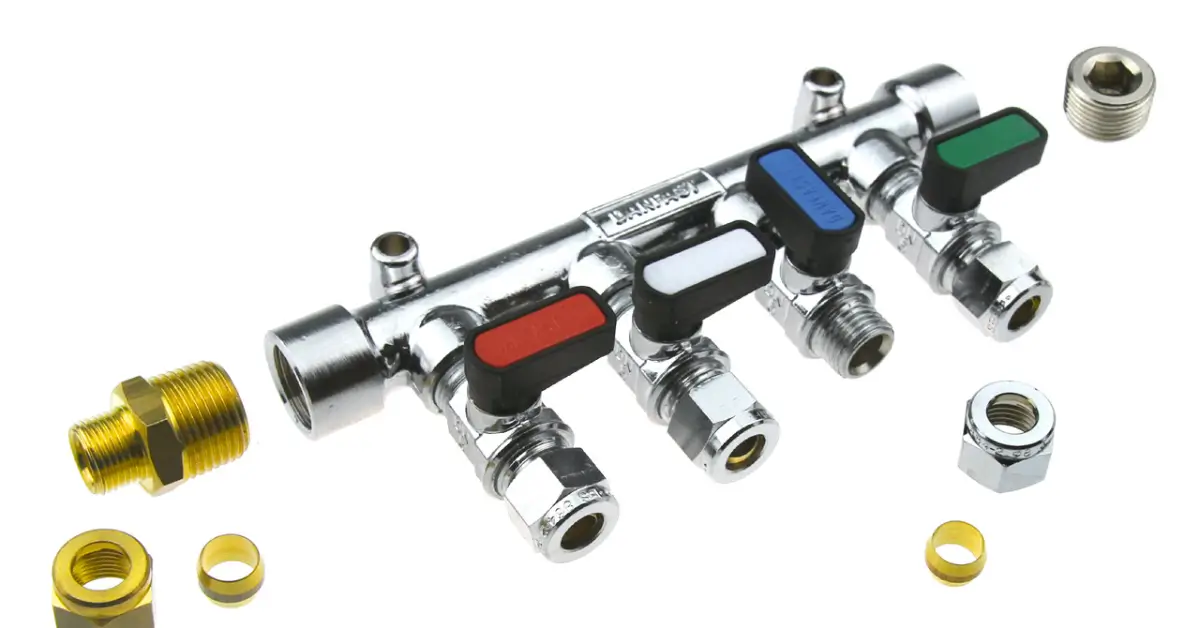

Design and Structure of a 1 Intake 4 Outlet System
The design of this manifold centers on durability and precision. Typically made of brass, stainless steel, or aluminum, it consists of one central inlet and four separate outlets arranged for easy accessibility.
Pressure regulators, safety valves, and fittings are often integrated for greater control. Each outlet can be used independently, which provides flexibility in operation. The compact design makes it suitable for both small and large-scale systems.
Read Also: hi def videographer
How the Flow and Pressure are Controlled
Flow and pressure are at the heart of safe gas distribution. A pressure regulator ensures each outlet receives gas at the required level. This helps prevent over-supply, leaks, or inconsistent performance.
In many setups, each outlet may also have its own shut-off valve, allowing operators to control supply individually. This balance guarantees efficiency, reliability, and safety across all connected systems.
Materials and Build Quality
The reliability of a manifold depends largely on its build material. Common options include:
- Brass manifolds: Durable, corrosion-resistant, suitable for general industrial use.
- Stainless steel manifolds: High strength, ideal for medical or food industries.
- Aluminum manifolds: Lightweight and cost-effective for moderate use.
- Composite manifolds: Used in specific applications requiring chemical resistance.
These materials ensure longevity, resistance to wear, and compatibility with a wide range of gases including LPG, oxygen, nitrogen, and compressed air.
Applications in Different Industries
Gas manifolds are indispensable across industries. In HVAC systems, they channel refrigerants and gases efficiently. In welding stations, they allow multiple torches to operate from a single source.
Laboratories rely on them for controlled gas delivery to sensitive experiments, while medical gas pipelines use them for safe delivery of oxygen and anesthesia.
Even in the food and beverage sector, they regulate CO₂ for carbonation and preservation processes. This wide spectrum of applications proves the versatility of the 1 intake 4 outlet manifold.
Benefits of Using Multi-Outlet Systems
The 1 intake 4 outlet design offers several clear advantages. It simplifies complex piping networks, making them easier to install and maintain. Equal distribution reduces waste and enhances performance consistency.
Multi-outlet systems are also cost-effective, requiring fewer supply sources and fittings. Safety is improved by centralizing control, minimizing the chances of leaks. For businesses, this translates into higher productivity, reduced downtime, and greater operational safety.
Installation Guidelines and Best Practices
Proper installation ensures safety and optimal performance:
- Check compatibility of the manifold material with the gas being supplied.
- Install pressure regulators to maintain consistent flow at all outlets.
- Use certified fittings and ensure all connections are leak-tested.
- Mount manifolds securely to avoid vibrations and wear.
- Follow industry safety standards such as ISO or ASME guidelines.
When followed correctly, these practices safeguard against hazards and extend the service life of the system.
Maintenance and Safety Standards
Routine inspection is vital for maintaining efficiency and safety. Regularly check for leaks using approved testing methods, replace worn-out valves, and keep the manifold free from dust or corrosive agents.
International standards such as ISO 7396 for medical gas systems or ASME guidelines for industrial manifolds define the framework for safe operation. By adhering to these standards, organizations can ensure compliance and protect users and equipment alike.
Innovations and Future Trends in Gas Manifolds
The future of gas manifolds is driven by automation and smart technology. Digital monitoring systems are being integrated to track pressure, flow, and leak detection in real-time.
Modular manifold systems allow for scalability, adapting quickly to expanding operations. In industries emphasizing sustainability, manifolds are being designed with energy-efficient features and eco-friendly materials, paving the way for safer and greener gas distribution solutions.
Final Thoughts
A gas manifold 1 intake 4 outlet is far more than a simple connector. It represents efficiency, safety, and reliability in gas distribution. From industrial operations to healthcare and research, its role is indispensable.
By investing in quality materials, proper installation, and routine maintenance, organizations can unlock the full potential of these manifolds while ensuring safety and compliance. As technology evolves, gas manifolds will only become smarter, safer, and more versatile.
FAQs
What gases can be used with a 1 intake 4 outlet manifold?
It can handle gases like oxygen, nitrogen, LPG, CO₂, and compressed air depending on the material.
Is a regulator necessary for each outlet?
Yes, regulators help maintain safe and consistent flow across outlets.
Can I use a gas manifold at home?
Yes, smaller versions are used in heating systems and LPG distribution for homes.
How often should a manifold be inspected?
Inspections should be carried out every 6–12 months depending on usage and industry standards.
Are stainless steel manifolds better than brass?
Both are excellent, but stainless steel offers higher durability and resistance, especially in medical or food industries.
